A memorial to the agrafe

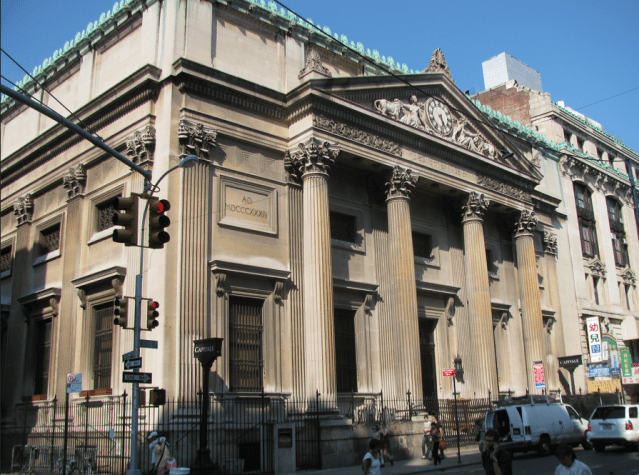

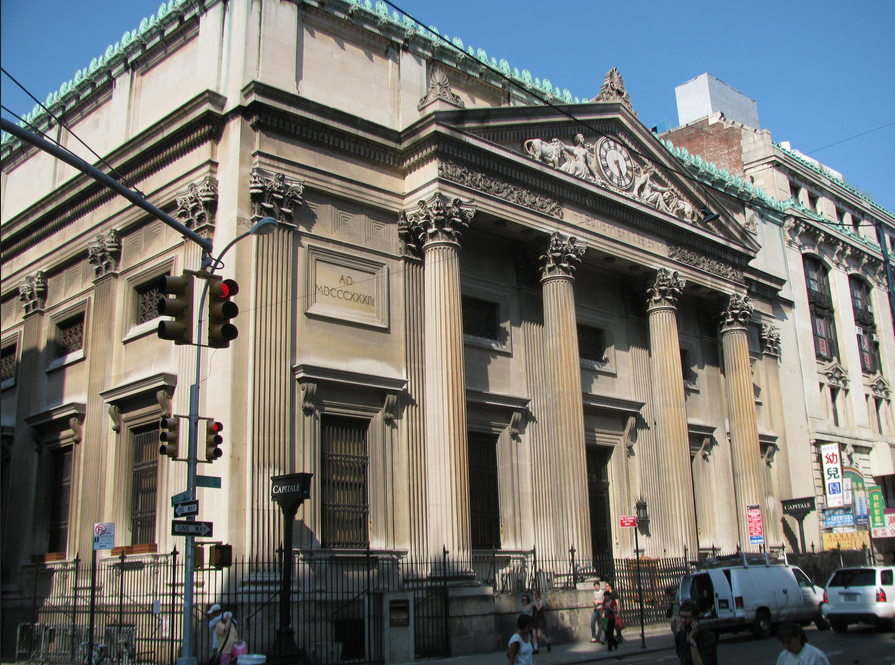

The Bowery Savings Bank, 130 Broadway. McKim, Mead & White, 1895. Each of the Corinthian columns and pilasters has an “astragal” moulding below its capital, just above the fluted portions of their shafts. As an example of “agrafe,” this astragal moulding was extended along the the faces of the adjacent walls, forming the bottom edge of a “sub frieze” at the tops of those walls; within that sub-frieze, a series of elegant geometric panels were carved. (Photo by Eden, Janine and Jim, via Wikimedia Commons)

Today is a day to remember those who have given their lives to perpetuate our American system, the first rule based on the ideal of equality under law for all citizens. Each citizen differs, and likewise, while maybe not quite so memorably, each element of the ornamental canon of classical architecture also is different, worthy and beautiful in its own way.

Seth Joseph Weine, an architect, archivist and tribune of classical architecture, long associated with the Institute of Classical Architecture & Art, headquartered in New York City, recently sent to the TradArch listserv a brief essay on a term in that canon that was new to both Seth and to me, and I hope it will be just as fascinating to readers as it is to both of us. His essay is below:

***

I was curious about what Wikipedia says are the main characteristics of Beaux-Arts architecture, so I read their article on it. I think it gets some things right – but, perhaps, doesn’t quite address the powerful soul of it.

But that’s not what I want to ask you all about. What I found mysterious was this passage in the article: “Beaux-Arts training made great use of agrafes, clasps that link one architectural detail to another.”

I think I know what they’re referring too – things like:

  • When the astragal moulding of a pilaster is extended across adjacent walls forming the bottom of the “sub-frieze,” whose space is then usually ornamented or paneled;
  • When a baseboard encounters a door architrave, and the designer makes the baseboard’s top moulding extend upward and around the architrave, to form the architrave’s taenia, a small “fillet” molding near the top of the architrave’s outermost moulding band;
  • When an arch is below a window sill, and that arch has a keystone, extending (and shaping) the keystone upward to merge with and form a (visual) support for the sill;
  • When a kitchen has a high ceiling, and the wall-cabinets are divided into sets of upper and lower doors by a taenia molding, extending that moulding horizontally to become the shape of the front edge of the kitchen’s open shelving;
  • When a building’s walls are rusticated (into bands and recesses), that same pattern is done on the columns, or conversely: the pattern on the columns is inversed – instead of recessed bands on the columns, it has bands that project;
  • Perhaps the most frequently seen example of an agrafe is when one looks at the base of a column or pilaster, and the baseboard of the adjacent or nearby wall is shaped so that the lines of the base (its “steps”) align with the major components of the base of the column or pilaster.

I love such stuff, this sort of interlocking of the design, and, in practice, I would play such delightful games as often as possible and appropriate. But I never encountered a term for such moves until I came across the word “agrafes.”

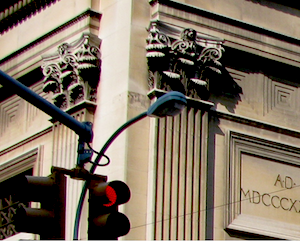

[Here Seth inserts a detail from the photograph above that gives a closer impression of the agrafe.]

I see that the word has another established use in the terminology of architectural construction: especially. it can refer to the dovetail-shaped joints we see in ancient and traditional masonry. Also, the non-architectural definition of the word means, according to Webster, “a hook-and-loop fastening,”  and they cite its etymological roots in the Latin for “to clamp on.”

Well, I’d say that sense of attachment or connectiveness resonates well with the the Beaux-Arts architectural term cited by Wikipedia.

I’ve certainly practiced agrafe-ing! But in my vasty vast experience and reading, I’d never come across the term for that kind of thing. Has anybody else ever heard of this term? Any scholarship on this? Any collection of great “agrafes”?

by Seth Joseph Weine
